Dongfeng Tianjin Road Sweeper

Specification：

欢迎联系我们， 了解更多细节。

Please contact us for more details.

Feature：

● Efficient and stable design humanity

Super dust collection technology: Optimize the gas flow field inside the nozzle and the structural design, and increase the picking capacity by 10%. centralize

Four-disc brush + rear suction nozzle "design, the vehicle in the process of driving, automatic inward rotation to gather garbage to the middle of the vehicle, square

The suction cup at the rear of the road sweeper will absorb all the garbage into the carriage at one time, improving the overall cleanliness rate.

Pipeline stabilization technology: Wessenboile hydraulic valve group, CNC cold-formed precision seamless steel pipe, hydraulic pipeline adopted by the country

The advanced card sleeve joint ensures the stability and fluency of the hydraulic action of the vehicle and greatly reduces the hydraulic system

Failure rate.

Humanized design: super wide rear door, opening Angle greater than 85 degrees, dumpster tipping Angle greater than 40 degrees,

Easier to dump rubbish and clean bins.

● Technology and environmental protection practicability

Fan noise reduction technology: Through simulation analysis, optimize fan blades and design low-noise fans. And for special wind

The frequency spectrum characteristics of the pneumatic noise of the machine, the addition of special fan muffler, the noise of the vehicle operation is reduced by 5%.

Power matching technology: optimize the engine and working condition matching, the use of secondary engine to drive the fan and hydraulic system,

Ensure that you can continue to work while driving. The transmission between the auxiliary engine and the fan is provided with an automatic clutch, which can

Ensure the automatic separation of the auxiliary engine from the fan during no-load start and stop, and improve the service life of the auxiliary engine.

● Easy, efficient and durable operation

Fully electronic driving control, the instrument on the electric control box displays operation parameters, fault information, etc. Video surveillance function,

Make the operation state at a glance, easy for the driver to operate and maintain.

Cleaning mechanism adaptive technology: cleaning mechanism can automatically avoid obstacles, with protection function and reset function, encounter

Bounce back after an obstacle, and reset after crossing an obstacle. Improve the cleaning rate of operation, and effectively extend the service life of brushing

More than 15%.

● High-end brand quality is reliable

The use of Sanyo motor, Jiangling, Yuchai, Kang machine and other well-known brand auxiliary engine, can make the road sweepers work

Longer, more powerful.

At the same time with brand accessories: Schneider control switch, Weissenbog solenoid valve set, Weissenbog hydraulic cylinder

And the whole set of hydraulic system, can ensure the service life of the vehicle.

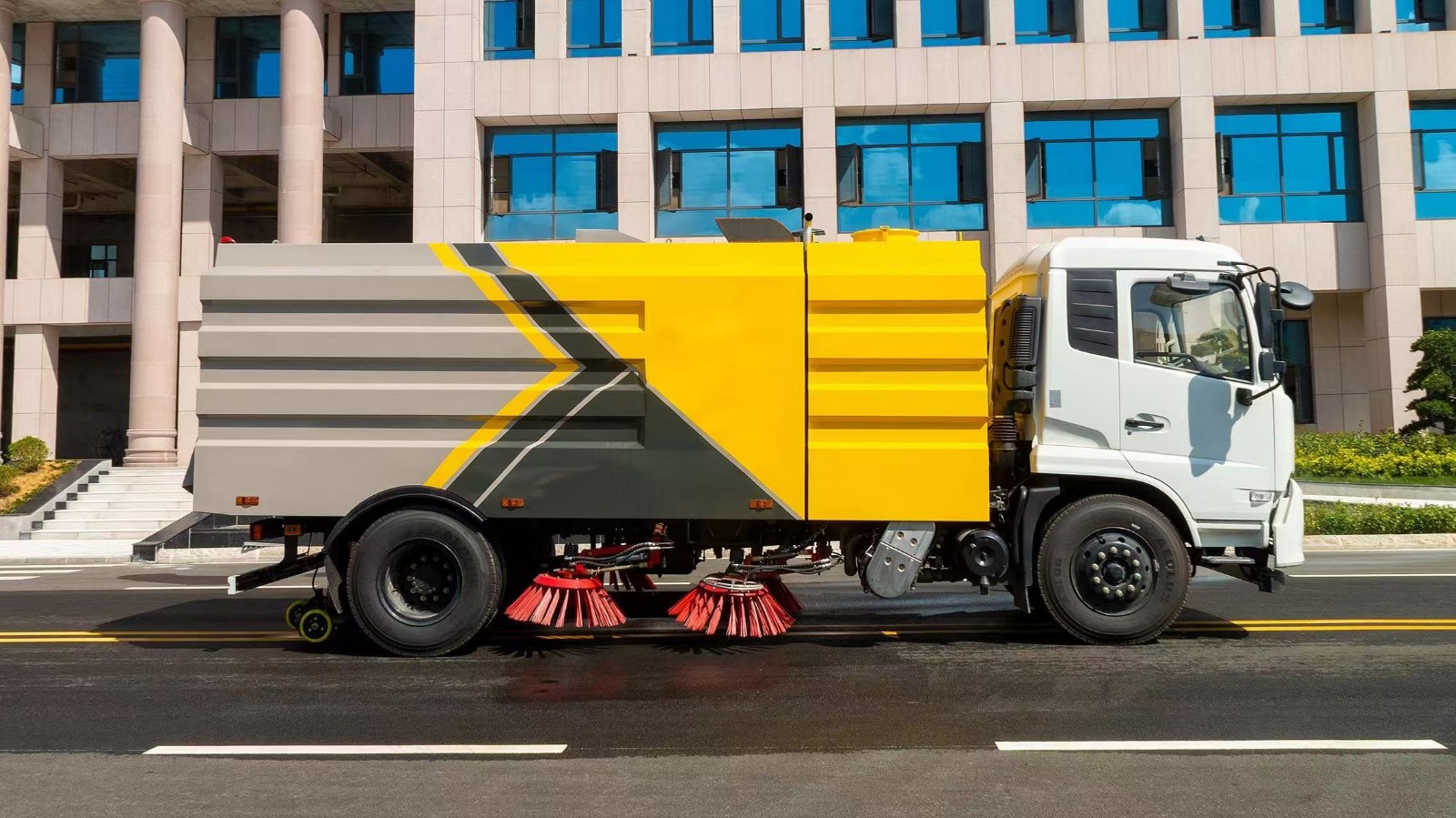

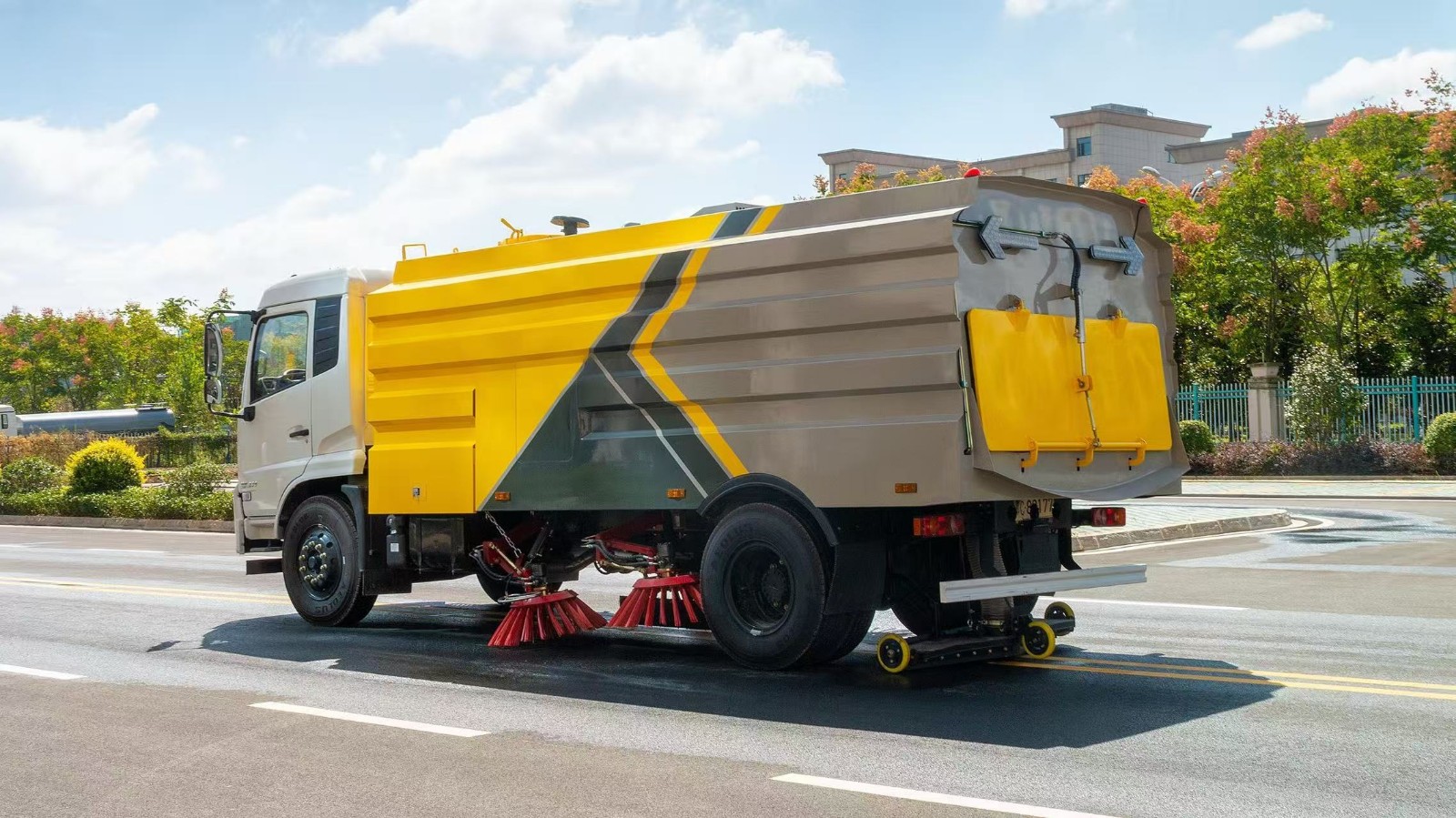

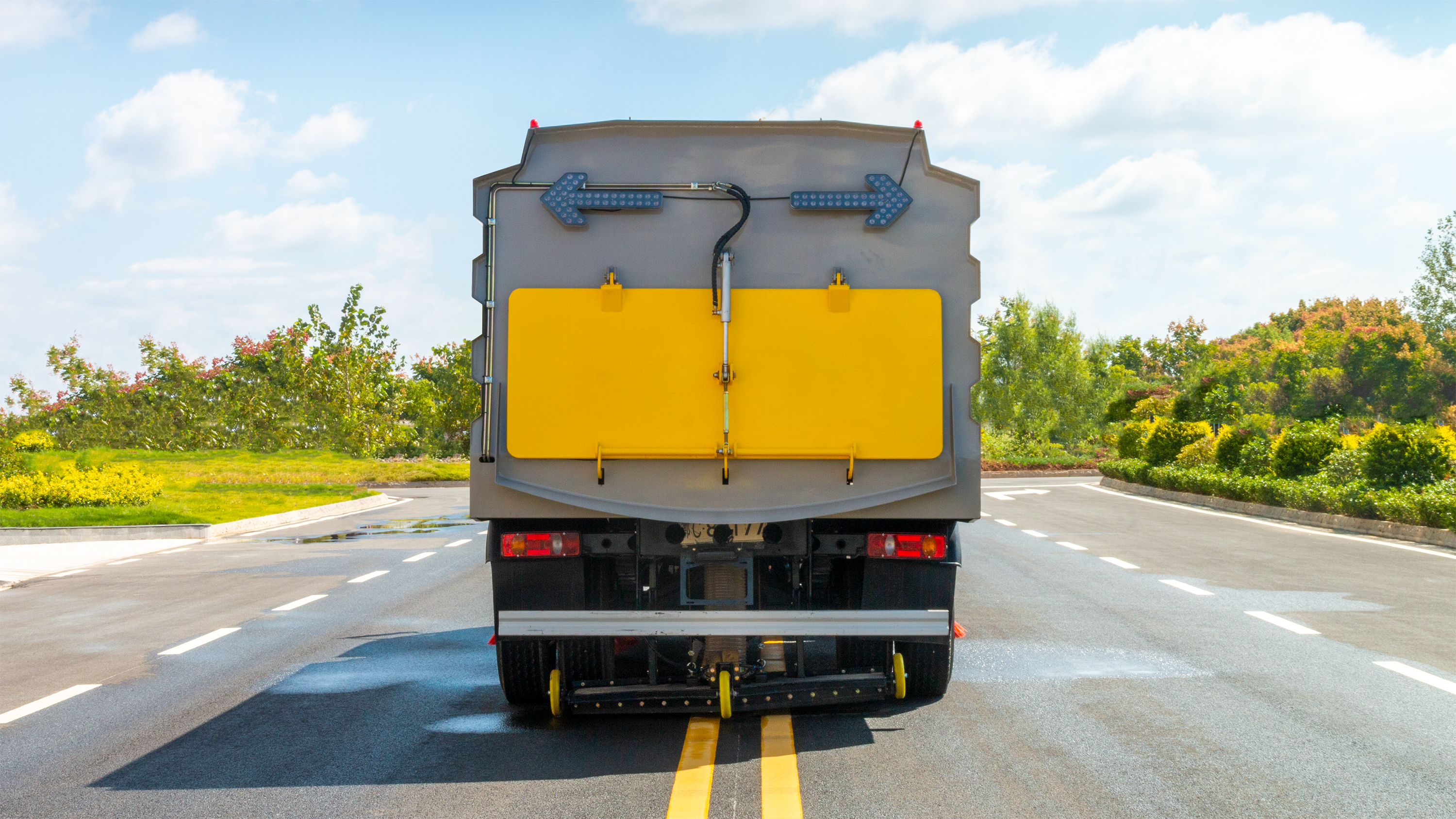

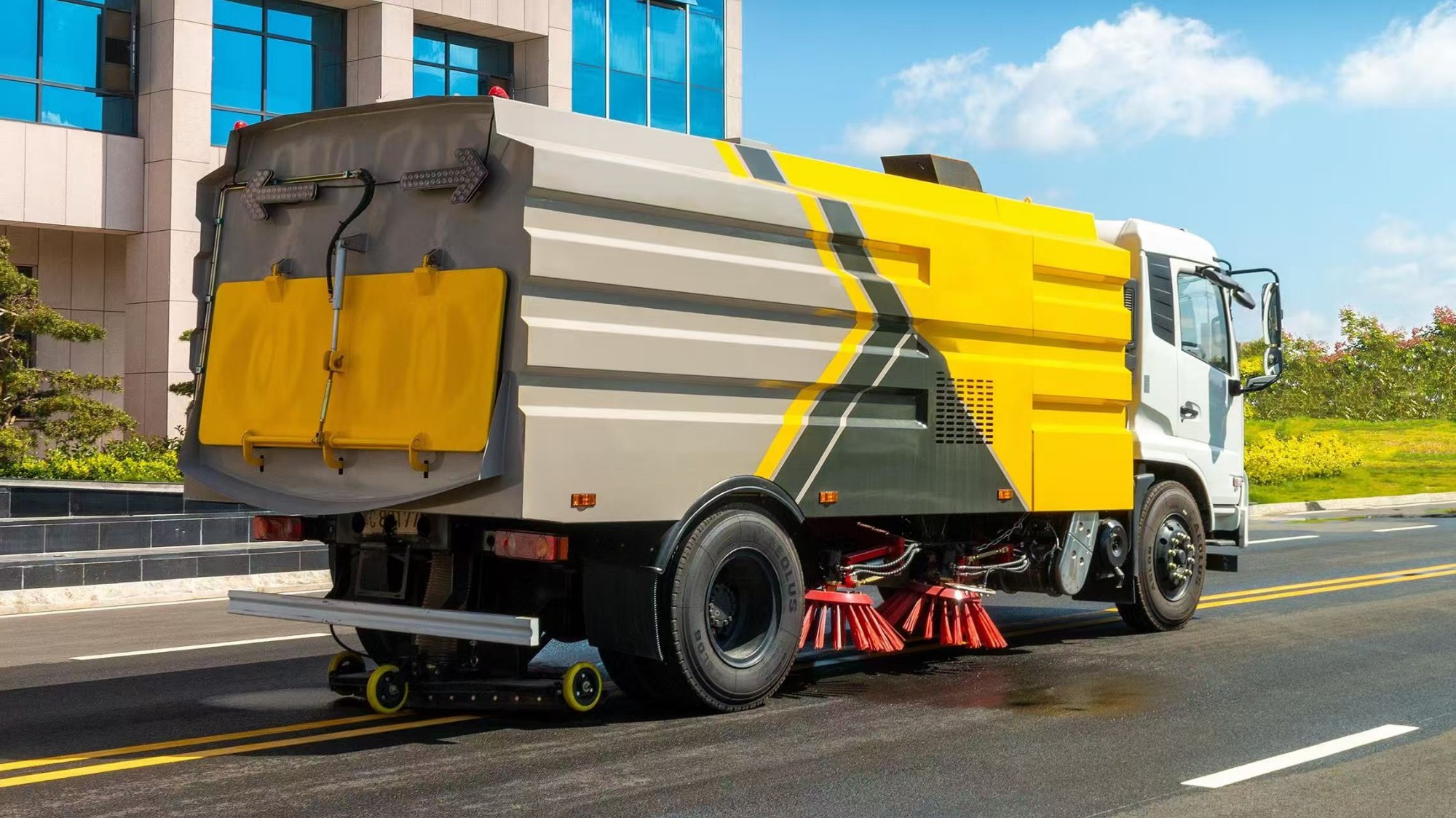

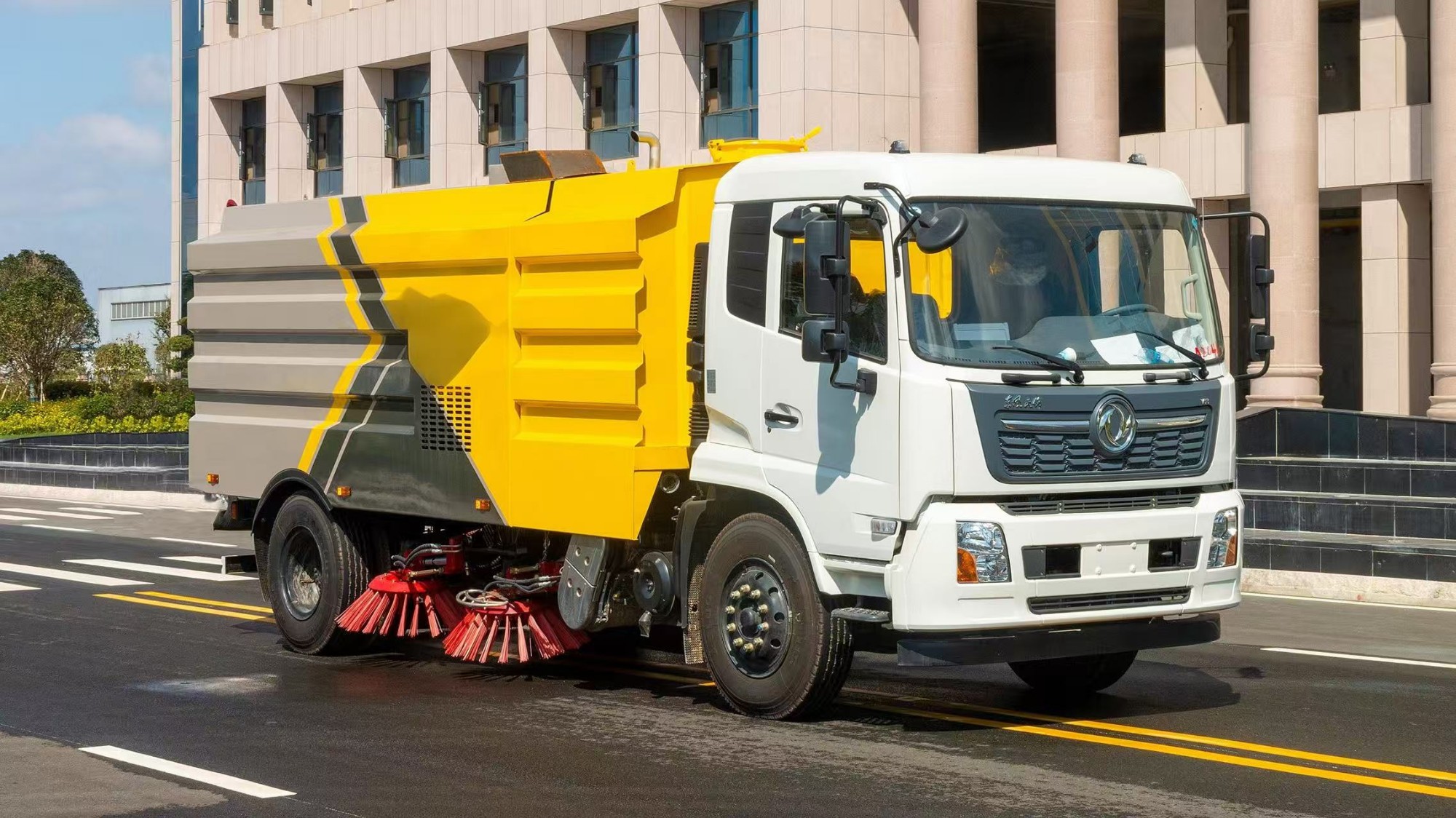

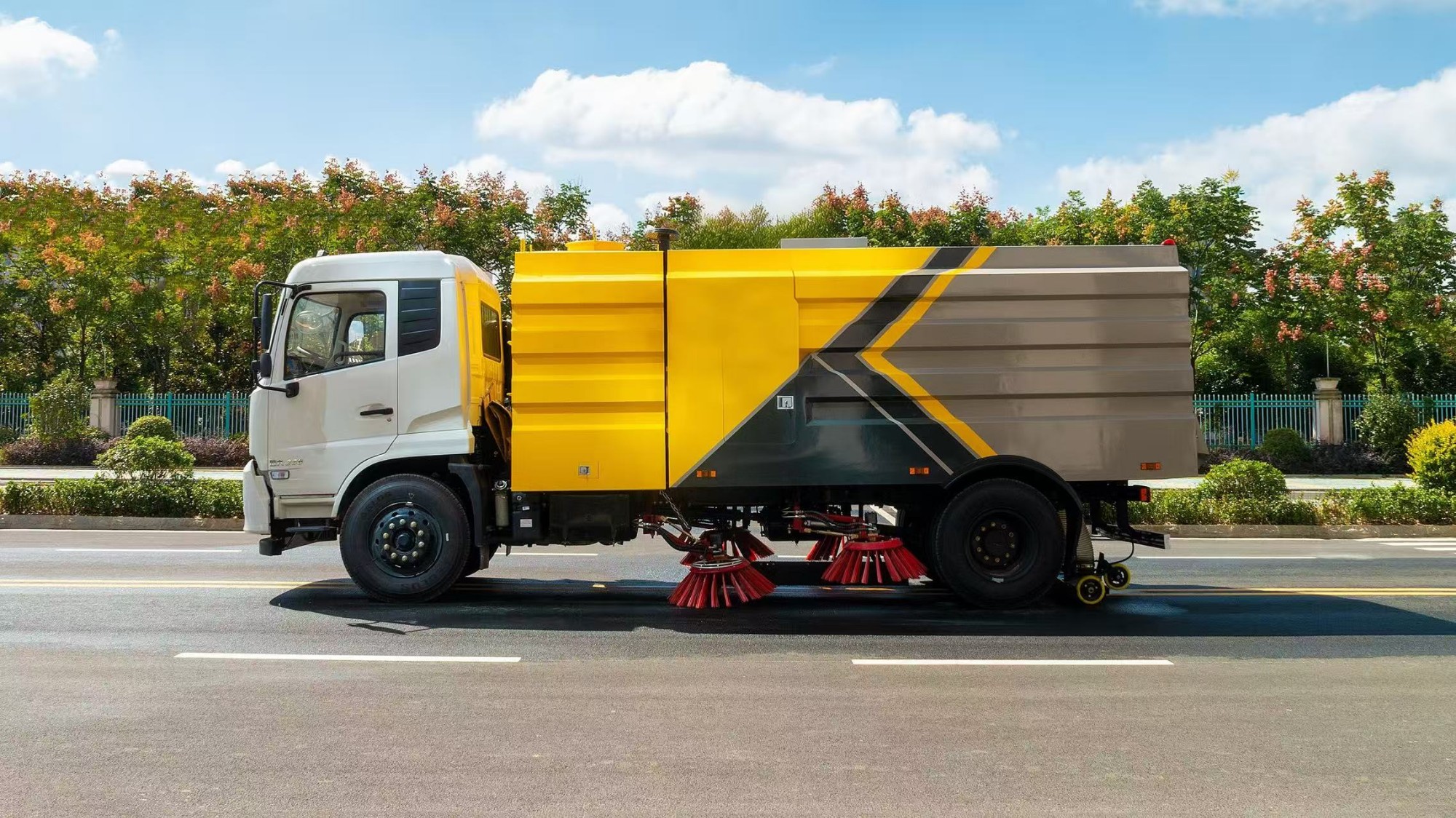

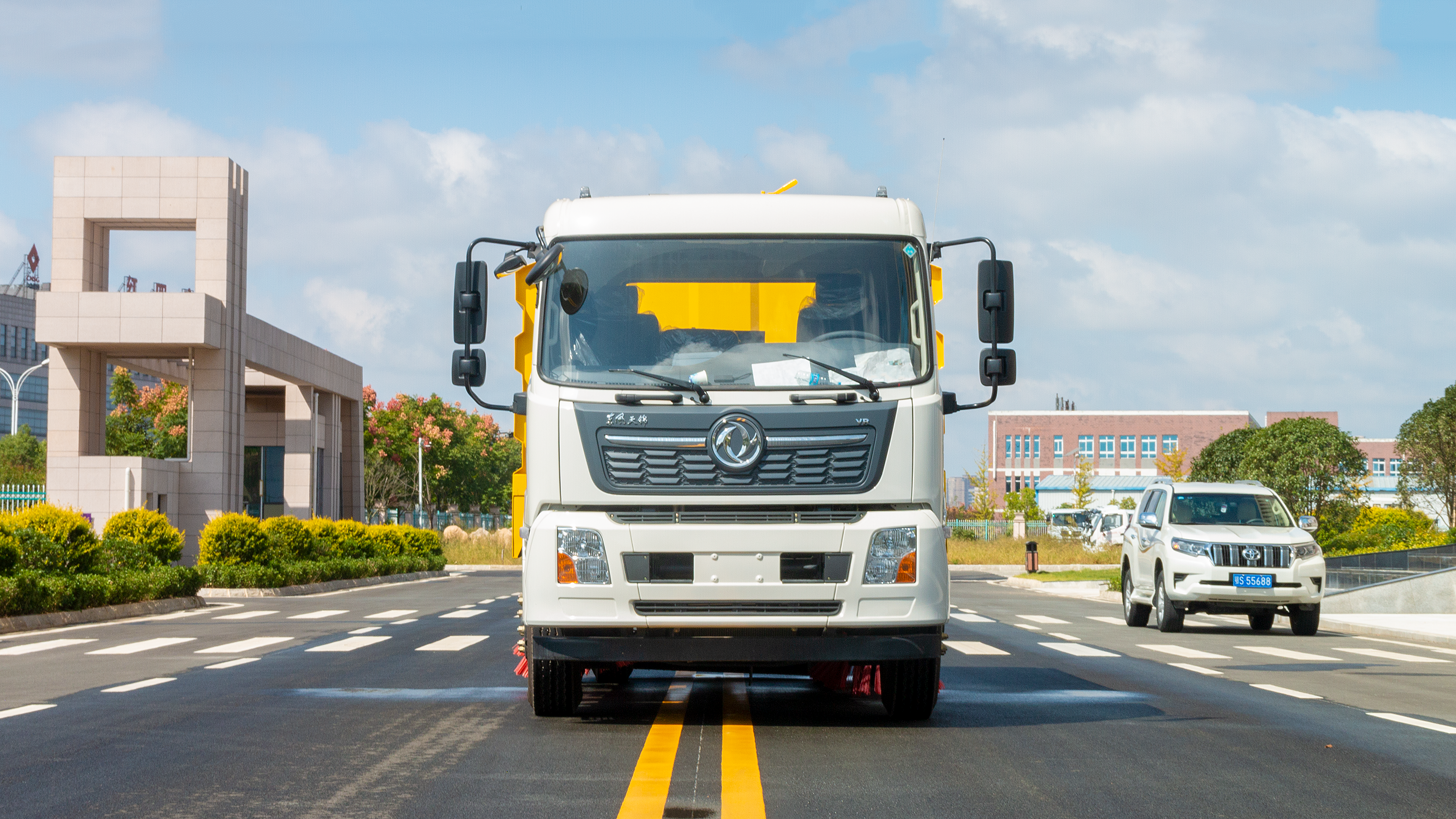

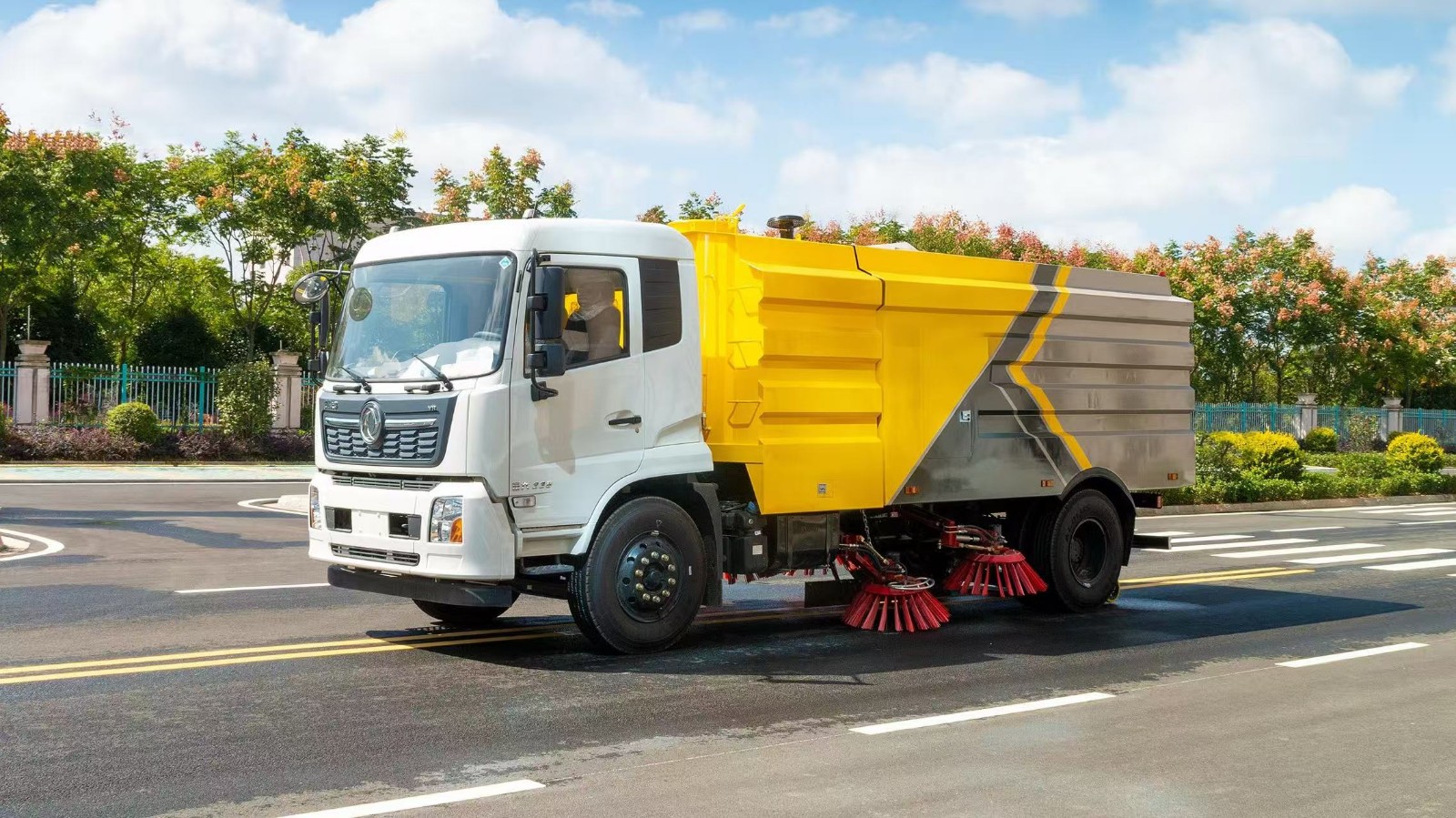

In-kind shooting Quality Assurance：
